Home > Products > Lab equipment > Cold trap pre-freezing no leakage fruit vacuum freeze dryer industrial

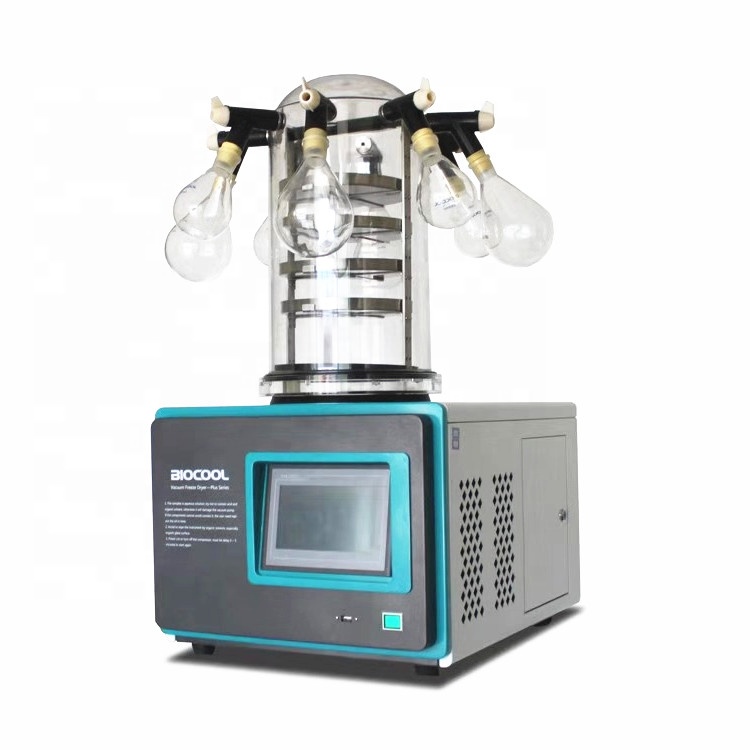

Cold trap pre-freezing no leakage fruit vacuum freeze dryer industrial

Product Description

Cold trap pre-freezing no leakage fruit vacuum freeze dryer industrial
Model

FD-1A-50

FD-1A-80

FD-1B-50

FD-1B-80

FD-1C-50

FD-1C-80

FD-1D-50

FD-1D-80

FD-1E-50

FD-1E-80

Size normal type Plug type Hanging bottle ordinary type Hanging bottle stopper type T-manifold
Sample tray (mm) 200*4 180*3 200*4 180*3 /
Cold trap size (mm) 220*130 220*130 220*130 220*130 220*130
Lyophilized area 0.12 0.08 0.12 0.08 /
Cold trap temperature (no load) -55℃/-85℃ -55℃/-85℃ -55℃/-85℃ -55℃/-85℃ -55℃/-85℃
Vacuum degree (no load) <9Pa
Water catching capacity 3L/4L
Lyophilization efficiency 2L/24H
Compressor power 7/8HP 2*2/3HP
Vacuum pump (domestic) 2L/S
Power (220V / 50Hz) 850W/1300W
Overall size W400*D600*H400 W300*D600*H950
  Main feature:
1. Integrated drying bin. No bonding, high strength, no leakage.
2. International famous brand compressor with high efficiency, stability and low noise.
3. Cold trap pre-freezing function.
4. Patented deflector technology to shorten the drying cycle.
5. Special sample cold trap low temperature drying function.
6. The original imported inflation valve can be filled with nitrogen or inert gas for storage after drying.
7.Adopt international famous brand compressor, high efficiency and stability, low noise.
8. The world's most cost-effective laboratory vacuum freeze dryer.     Over the past 20 years, we have gained the trust and support of many customers. Our company has established close cooperative relations with many world famous brands, providing high-quality products and pre-sales and after-sales services for the scientific research and development of all walks of life. In order to respond to the national "ribbon" strategy, we set up an overseas international business department to become a cross-border e-commerce to expand overseas markets and bring high-quality products to overseas customers.   1.Do you provide free samples? A:Yes. We offer free samples, including customized samples. You only need to pay the freight. Sample delivery date is within 1- 3days, customized sample is about 3-7days. 2.Can you provide us a competitive price and good quality products? A:Yes. We have our strict evaluation criteria of quality on our partner factory, and we did complete and detailed market research and priced competitively. 3.What is your terms of payment? A:We accept T/T, Visa, MasterCard, E-checking, L/C, Western Union and more.Please choose your preferred payment method. 4.How to inspect the goods? A:Products will be checked by our QC staff first , then our project manager. Client can come and check by themselves or third-party check is available.

Contact us if you need more details on vacuum freeze dryer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about fruit vacuum freeze dryer、vacuum freeze dryer industrial. If these products fail to match your need, please contact us and we would like to provide relevant information.
