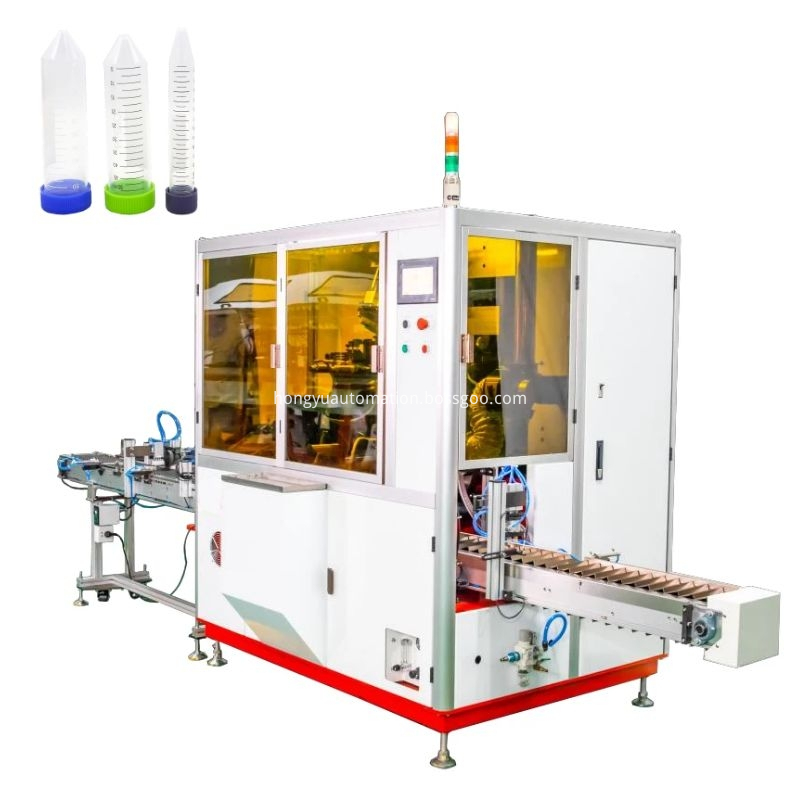

Automatic Screen Printing Curing Machine For Centrifuge Tube

  • Automatic Screen Printing Curing Machine For Centrifuge Tube
  • Automatic Screen Printing Curing Machine For Centrifuge Tube
  • Automatic Screen Printing Curing Machine For Centrifuge Tube
  • Automatic Screen Printing Curing Machine For Centrifuge Tube

Automatic Screen Printing Curing Machine For Centrifuge Tube

    Packaging: plywood
    Productivity: 30
    Brand: HY
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 30
    Certificate: CE
    Port: GZ,SZ,YW

Basic Info

Model No.: HY230

Product Description

2 color automatic centrifuge tube screen printing machine


Machine Introduction:

1.Specially designed for two color screen printing on circular objects, such as tubes, bottle caps, Centrifuge tube, cosmetic jars and so on. And also can achieve multicolour printing and precise color register.

2.Main drive system uses transmission equipment of famous brand from Europe with precise high-speed indexer, so that can make operations more stable and reliable. The maximum printing speed can reach up to 4200pcs/hr.

3.Equipped with world famous PLC controller and convenient touch screen, therefore the whole operation becomes easy and simple.  Be provided with automatic monitoring function such as ionic wind dedusting, “no object, no printing”, automatic alarm due to low air pressure and waste or wrong material, etc,


Machine Main Specifications:

Printed Object Dimension

Diameter: φ8-28mm, Height: 20-230mm

Max. print area:

236x170mm

Max. printing speed:

60-80 pcs/min

Drive:

Mechanical driven

Control system:

OMRON PLC & Touch Screen

Stations:

15 stations

Dust removal device:

1 unit

Flame treating system:

1 unit

Print head:

1 unit

UV system:

1 unit intelligent UV system

UV lamp power:

3.6 KW

Electrical Supply:

380V/480V 3phase 50Hz/60Hz

Air requirement:

6-8 bar

Power consumption:

4.5 KW

Machine Dimension (LxWxH):

2600x1700x1900mm

Machine weight:

1500 KG

Injector 2 color printer

Centrifuge Tube Screen Printing Machine 7 Jpg
